SOLD - SOLD - SOLD

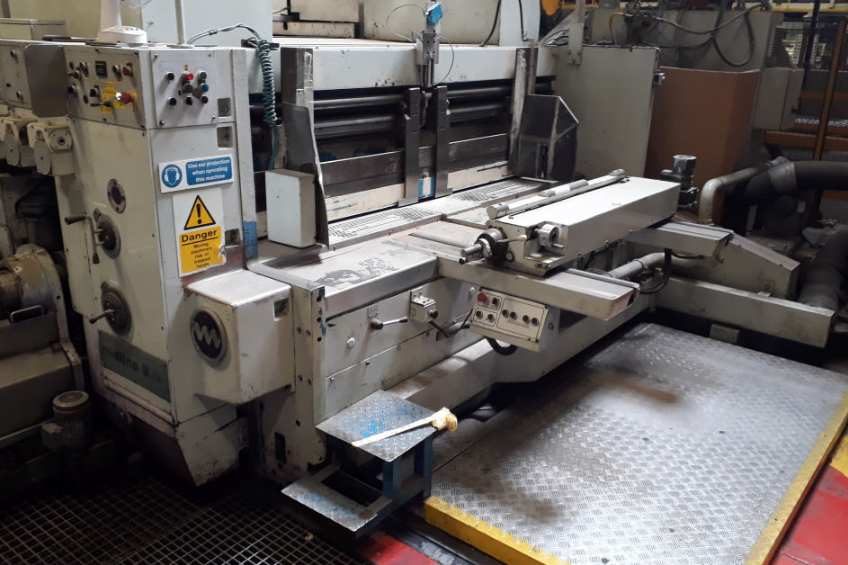

Feeder

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
FEEDER TYPE Vacuum Plate
SETUP Manual
FULL DUST COLLECTION SYSTEM No
SKIP FEED (Not applicable for Flatbed) Yes
SHEET CLEANING No

Print Unit Flexo 1

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
PRINT UNIT TYPE 1 Bottom
PRINT UNIT TYPE 2 Linked
SETUP POSITION Lateral Shifting
ANILOX TYPE Ceramic
ANILOX VOLUME (cm3/m2) 7.08
ANILOX SCREEN (l/cm) 200
PRINT CYL. DIAMETER (mm) 318.3
ANILOX ROLL QUICK CHANGE SYSTEM No
CLICHÉ MOUNTING Matthews + Straps
CLICHÉ CORRECTION Axial direction
TRANSPORT SYSTEM Vacuum Belts
METERING SYSTEM Roll
WASHING Automatic
PLATE WASHING Manual
DRYER No

Print Unit Flexo 2

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
PRINT UNIT TYPE 1 Bottom
PRINT UNIT TYPE 2 Linked
SETUP POSITION Lateral Shifting
ANILOX TYPE Ceramic
ANILOX VOLUME (cm3/m2) 9.3
ANILOX SCREEN (l/cm) 350
PRINT CYL. DIAMETER (mm) 318.3
ANILOX ROLL QUICK CHANGE SYSTEM No
CLICHÉ MOUNTING Matthews + Straps
CLICHÉ CORRECTION Axial direction
TRANSPORT SYSTEM Vacuum Belts
METERING SYSTEM Chambered doctor blade
WASHING Automatic
PLATE WASHING Manual
DRYER No

Print Unit Flexo 3

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
PRINT UNIT TYPE 1 Bottom
PRINT UNIT TYPE 2 Linked
SETUP POSITION Lateral Shifting
ANILOX TYPE Ceramic
ANILOX VOLUME (cm3/m2) 7.91
ANILOX SCREEN (l/cm) 300
PRINT CYL. DIAMETER (mm) 318.3
ANILOX ROLL QUICK CHANGE SYSTEM No
CLICHÉ MOUNTING Matthews + Straps
CLICHÉ CORRECTION Axial direction
TRANSPORT SYSTEM Vacuum Belts
METERING SYSTEM Roll
WASHING Automatic
PLATE WASHING Manual
DRYER No

Print Unit Flexo 4

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
PRINT UNIT TYPE 1 Bottom
PRINT UNIT TYPE 2 Linked
SETUP POSITION Lateral Shifting
ANILOX TYPE Ceramic
ANILOX VOLUME (cm3/m2) 9.4
ANILOX SCREEN (l/cm) 350
PRINT CYL. DIAMETER (mm) 318.3
CLICHÉ MOUNTING Matthews + Straps
CLICHÉ CORRECTION Axial direction
TRANSPORT SYSTEM Vacuum Belts
METERING SYSTEM Chambered doctor blade
WASHING Automatic
PLATE WASHING Manual
DRYER No

Slotter

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
# SHAFTS 4
BLADE THICKNESS (mm) 8
SETUP Motorised

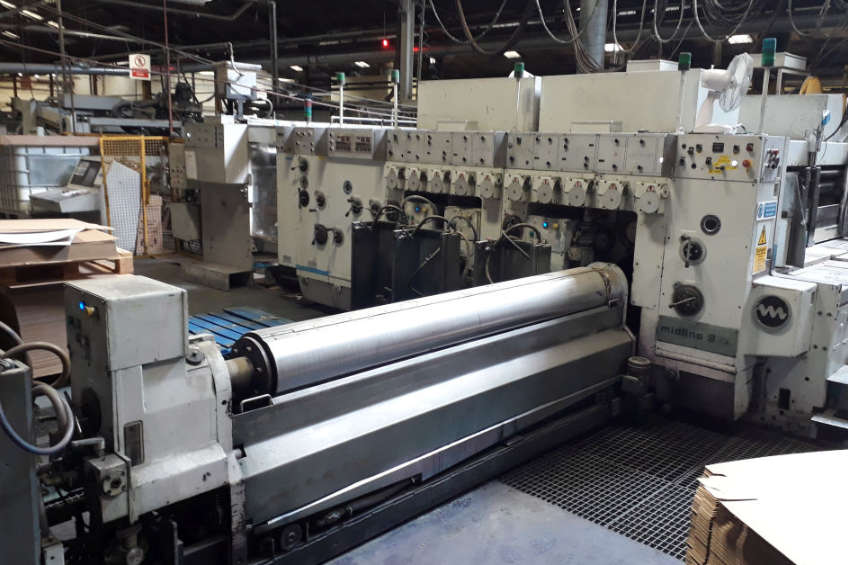

Rotary Die Unit

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
ANVIL PU: Poly-urethane

Folder Gluer

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
TRANSPORT Belt
FOLDING Shaped Belt

Glue Unit I

MANUFACTURER Gartek
MODEL ATM20
YEAR 2002
GLUE UNIT TYPE Wheel

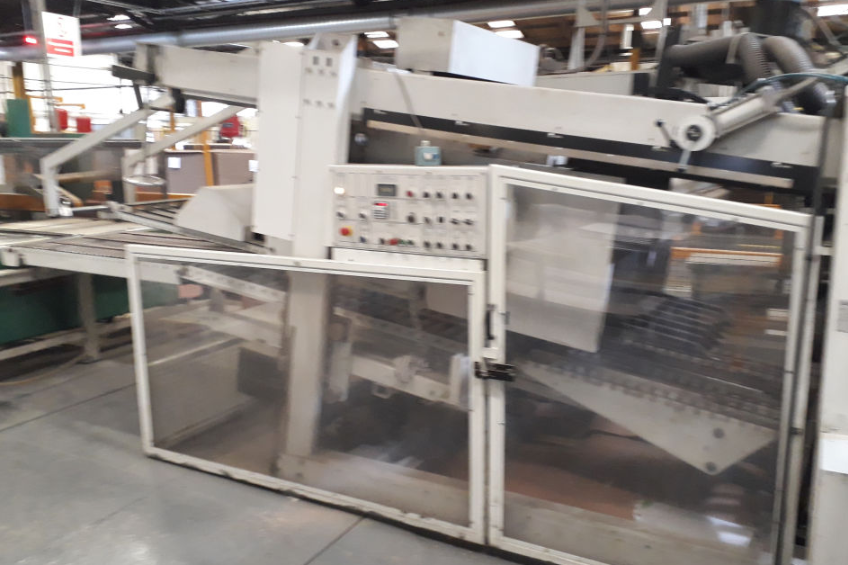

Counter Ejector

MANUFACTURER Martin
MODEL SAM22907M09
YEAR 2007
YEAR INSTALLED 2007
COUNTER EJECTOR TYPE Up
SETUP Motorised

Palletiser

MANUFACTURER Dücker
MODEL Pallet Inserter only
YEAR 2017
YEAR INSTALLED 2017
PALLET FEED Automatic
INSERTS FEED Manual
LABEL APPLICATOR No

Bundler

MANUFACTURER Signode
MODEL ISB 1600-Mono
YEAR 2002

Control System

CONTROL TYPE Motorised
MANUFACTURER Martin
YEAR 1989
REGISTER Yes
LINK HOST No

Main machine data

MANUFACTURER Martin
MODEL Midline 924
YEAR 1989
YEAR INSTALLED 2007
PRINT UNITS # 4
ROTARY Yes
STITCHER No
TAPER No

MAX. SHEET LENGTH (MM. WITHOUT SKIP FEED) 920
MAX. SHEET LENGTH (MM. WITH SKIP FEED) 1200
MIN. SHEET LENGTH (MM.) 255
MAX. SHEET WIDTH (MM.) 2400
MIN. SHEET WIDTH (MM.) 480
CAPACITY 3500
